CONFIGURATION
| Specifications Of Performance | |||
| Operation Weight | 2480kg | Power | 25HP |
|---|---|---|---|
| Bucket Capacity | 0.045m³ | Engine Model | Laidong 385 |
| Operation Mode | Backhoe | Digging Force | 13.5KN |
| Max Grade Ability | 30° | Pump Type | Piston Pump |
| Fuel Tank Capacity | 23L | Swing Motor | Eaton |
| Working Motor | Dong xian | Piston Pump | Taifeng |
| Main Dimension | |||
| Overall Dimensions | 2500*1400*2200mm | Track Gauge | 1280mm |
| Track Length(on ground) | 1250mm | Track Width | 230mm |
| Chassis Width | 1090-1400mm | Track Height | 380mm |
| Swing Boom | ±60° | Transportation Length | 3830mm |
| Operating Range | |||
| Max Digging Depth | 2200mm | Min Swing Radius | 1680mm |
| Max Digging Radius | 3280mm | Max Digging Height | 3850mm |
| Max Dumping Height | 2830mm | Max Vertical Digging Depth | 1890mm |
| Platform Ground Clearance | 458mm | ||
Due to the continuous updating and progress of technology, any differences in technical parameters and configurations between the actual product and the actual product shall be subject to the actual product delivered; Additionally, the machine in the picture may include additional equipment.
Demo Video+Get More

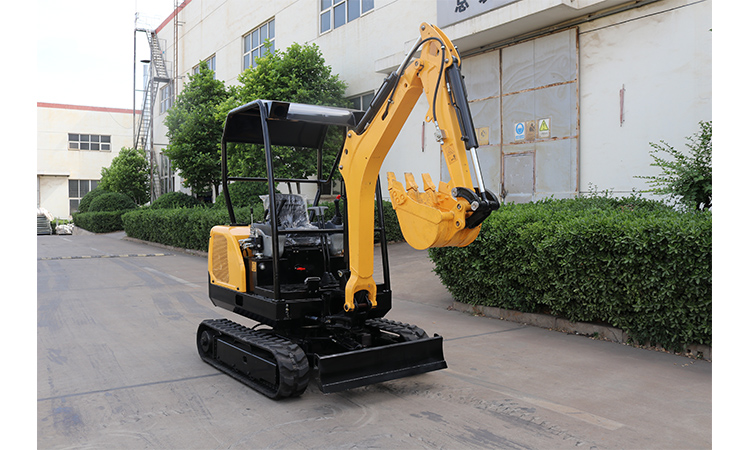

MY25 Mini Excavator is a small and micro excavator independently developed by E.P., which adopts advanced and efficient power and hydraulic system configuration to ensure high efficiency and fuel saving. It has tailless rotation, boom lateral movement, and floor retraction functions. The new configuration of adjustable high-end seats effectively reduces driver fatigue during operation
Deflection boom
The range of the deflectable working device is 625mm to the left and 400mm to the right. Both sides can easily dig to the outer edge of the track, and can work in areas with limited space such as wall edges and corners.
Track extension and retraction
The retractable track width range is 980mm~1350mm, which improves the stability of the entire machine while allowing excavation to pass through less than 1m of work space. The rotary bulldozer ensures safe passage while improving work efficiency.
Company Info+Get More
EP Machinery Co., Ltd. since 1998, 1 factory, 1 company, more than 300 workers, 3000 square meters workshop, more than 16 years of export experience, we are a professional manufacturer of construction machinery in China, the machines cover wheel excavator 4-10 tons, small and large crawler excavator 1-10 tons, small compact excavator and small mini excavator, etc. So I believe there must be a model that can meet your needs. Most of the machines have CE, TUV certificates, company ISO certificates. Every year, more than 1000 mini excavators are sold to the European market, 500 to the Australian market, the United States, Canada market.
Selected FAQ+Get More
Regularly check the connection and tightening of each component, and replace seriously worn components in a timely manner. When cleaning accessories, use special detergent and soft cloth to wipe them, and avoid using acid and alkali corrosive substances. Lubricating parts should be regularly filled with lubricating oil to maintain good lubrication.
When choosing, factors such as equipment stability, power, excavation depth, and after-sales service should be considered.
They are usually used in urban infrastructure, residential area renovation, pipe laying and gardening projects, especially in places with limited space.
Mini excavator is an ideal excavator to meet the daily work needs of workers. Its fuselage is only 72cm wide, with a foldable flip bar, which can pass through very narrow places and even reach the places that most people can reach.
In fact, the design of small mini excavators focuses on simplicity, so that even non-professionals can master the basic operations in a short time.
There are many types of attachments for small mini excavators, including buckets, grab buckets, wood clamps, digging buckets, breaker hammers, augers, bulldozer scrapers, hooks, etc.
