CONFIGURATION
| specifications of performance | |||
| Operation Weight | 1500KG | Power | 16.5HP |
|---|---|---|---|
| Bucket Digging Force | 13.5KN | Engine Model | Koop 292F |
| Travel Speed | 3.5KM/H | Backhoe | |
| Bucket Capucity | 0.03M³ | Hydraulic Control | |
| Main Dimension | |||
| Overall Dimensions | 2550*1100*2245 MM | Wheelbase | 1060MM |
| Chassis Width | 1100MM | Track Width | 180MM |
| Track Length | 1250MM | Min Ground Clearance | 120MM |
| Operating Range | |||
| Max Digging Depth | 1850MM | Max Digging Height | 2750MM |
| Max Vertical Digging Height | 1490MM | Max Digging Radius | 3100MM |
| Max Dumping Height | 2070MM | Overall Dimension | L:2550MM W:1100MM H:2245MM |
| Hydraulic System | Eaton | ||
Due to the continuous updating and progress of technology, any differences in technical parameters and configurations between the actual product and the actual product shall be subject to the actual product delivered; Additionally, the machine in the picture may include additional equipment.
Demo Video+Get More

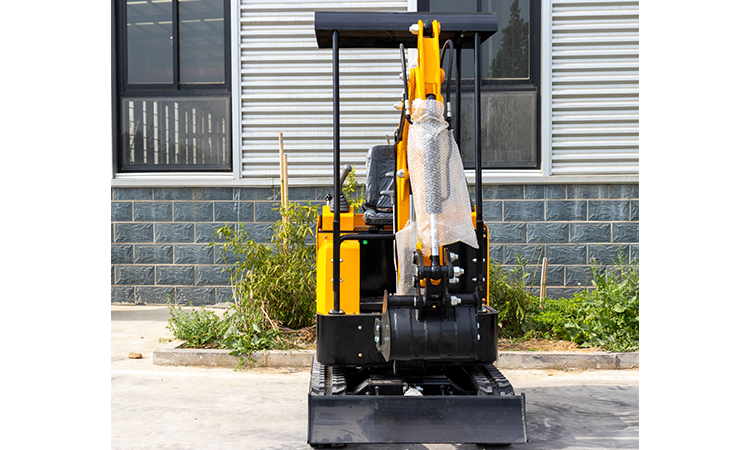

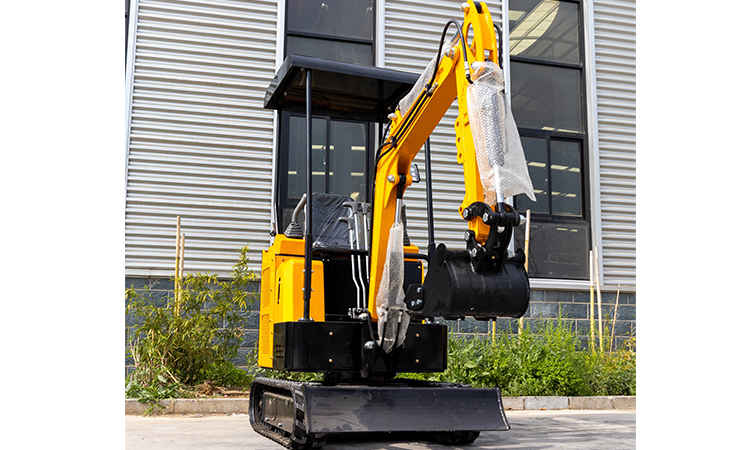

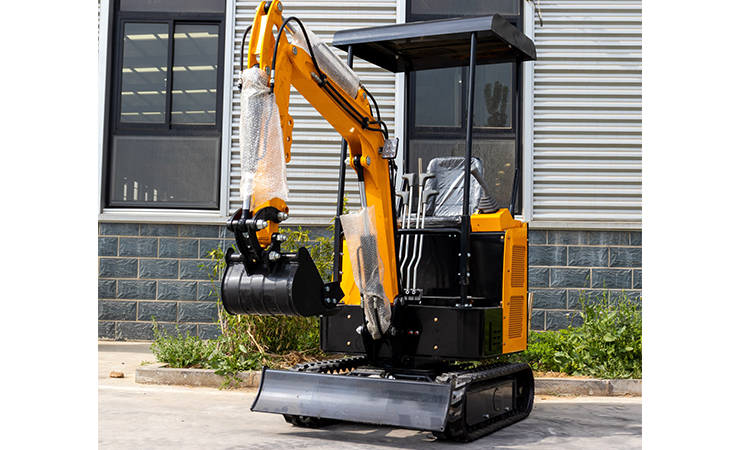

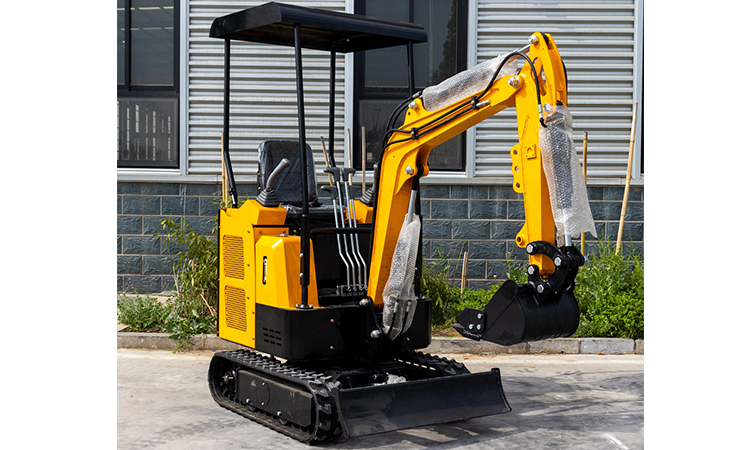

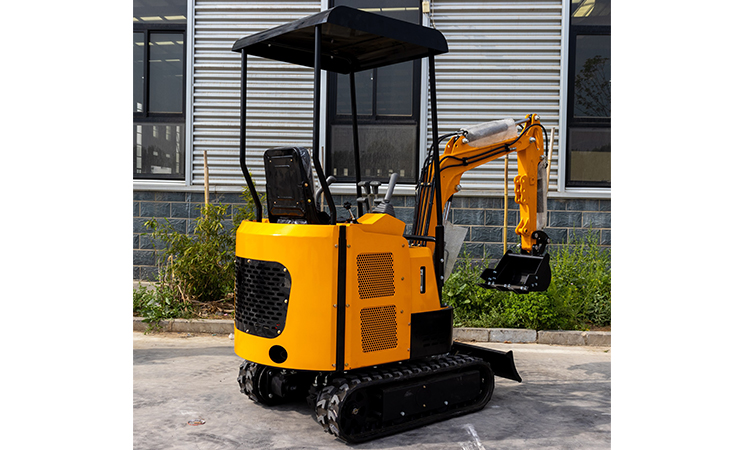

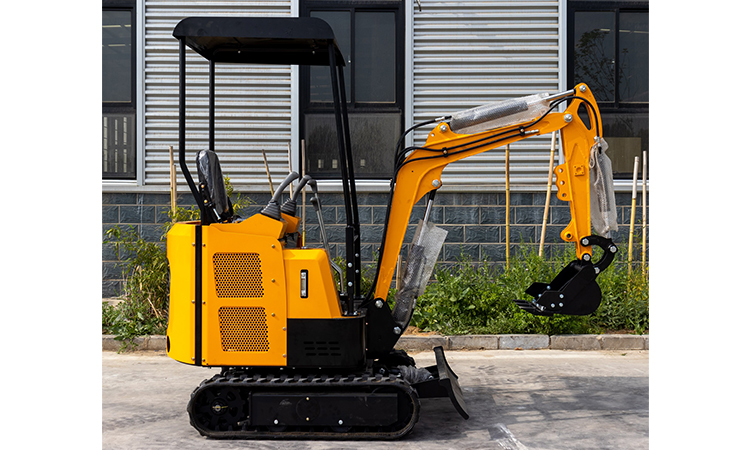

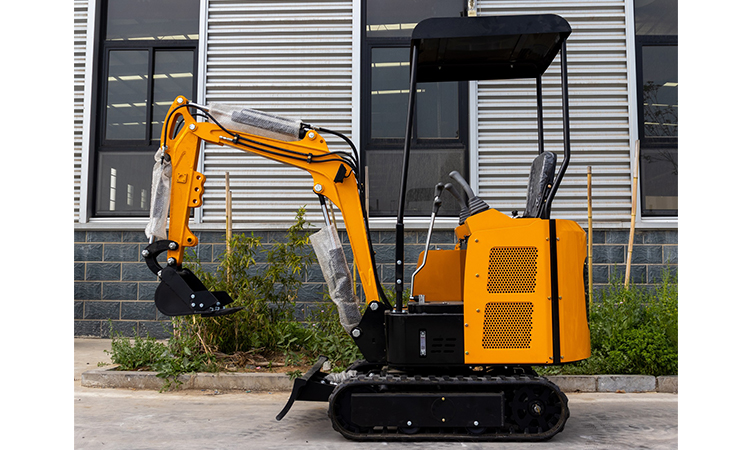

MY15 Mini Excavator is a small and micro excavator independently developed by E.P., which adopts advanced and efficient power and hydraulic system configuration to ensure high efficiency and fuel saving. It has tailless rotation, boom lateral movement, and floor retraction functions. The new configuration of adjustable high-end seats effectively reduces driver fatigue during operation
Deflection boom
The range of the deflectable working device is 625mm to the left and 400mm to the right. Both sides can easily dig to the outer edge of the track, and can work in areas with limited space such as wall edges and corners.
Track extension and retraction
The retractable track width range is 980mm~1350mm, which improves the stability of the entire machine while allowing excavation to pass through less than 1m of work space. The rotary bulldozer ensures safe passage while improving work efficiency.
Company Info+Get More
EP Machinery Co., Ltd. since 1998, 1 factory, 1 company, more than 300 workers, 3000 square meters workshop, more than 16 years of export experience, we are a professional manufacturer of construction machinery in China, the machines cover wheel excavator 4-10 tons, small and large crawler excavator 1-10 tons, small compact excavator and small mini excavator, etc. So I believe there must be a model that can meet your needs. Most of the machines have CE, TUV certificates, company ISO certificates. Every year, more than 1000 mini excavators are sold to the European market, 500 to the Australian market, the United States, Canada market.
Selected FAQ+Get More
Mini excavator is an ideal excavator to meet the daily work needs of workers. Its fuselage is only 72cm wide, with a foldable flip bar, which can pass through very narrow places and even reach the places that most people can reach.
First of all, it depends on the materials that need to be processed. If you need to dig out sand, gravel, etc., you can choose a bucket or breaker; if you need to transport wood, steel, etc., you can choose wood clamps or hooks; if you need to compact the ground Or piling, you can choose a tamping attachment or an auger.
When choosing, factors such as equipment stability, power, excavation depth, and after-sales service should be considered.
The maintenance of a small mini excavator is relatively simple. Regular inspection and replacement of necessary wearing parts can maintain its good working condition.
The mini-excavator has powerful functions and can handle all kinds of work, such as digging holes, digging ditches, demolishing, removing tree stumps, digging garden ponds, etc.
They are usually used in urban infrastructure, residential area renovation, pipe laying and gardening projects, especially in places with limited space.
