CONFIGURATION
| Specifications Of Performance | |||
| Operation Weight | 1800kg | Power | 15HP |
|---|---|---|---|
| Operation Mode | Double Gear Pump | Engine Model | Yanmar 3TNV70 |
| Multi-Way Valve | NHI | Working Device | Backhoe |
| Bucket Capucity | 0.04m³ | Pilot Pperation | Double Gear Pump |
| Hydraulic Pump | Gear Pump | Travel Speed | 3km/h |
| Main Dimension | |||
| Overall Dimensions | 2200*1100*2200mm | Chassis Width | 1100mm |
| Track Length | 1450mm | Track Width | 180mm |
| Track Height | 320mm | Track Gauge | 1050mm |
| Operating Range | |||
| Max Digging Radius | 3280mm | Min Radius Of Rotation | 1100mm |
| Max Digging Depth | 1850mm | Max Digging Height | 2790mm |
| Max Dumping Height | 2400mm | Max Vertical Digging Height | 1950mm |
| Max Lifting Height Of Dozer Blade | 270mm | Max Digging Depth Of Dozer Blade | 200mm |
Due to the continuous updating and progress of technology, any differences in technical parameters and configurations between the actual product and the actual product shall be subject to the actual product delivered; Additionally, the machine in the picture may include additional equipment.
Demo Video+Get More

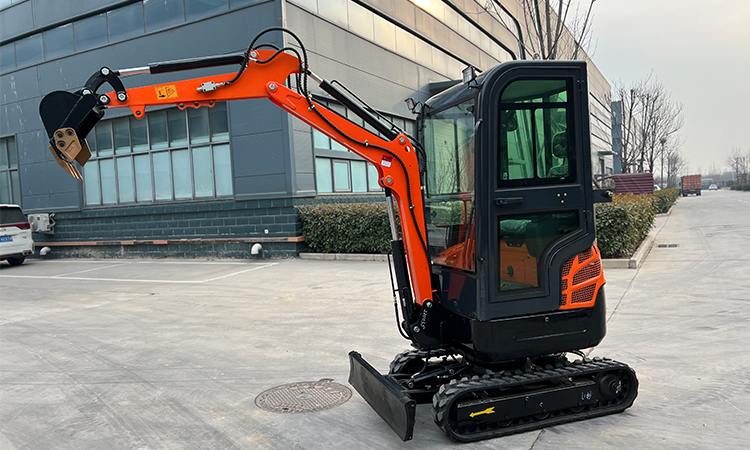

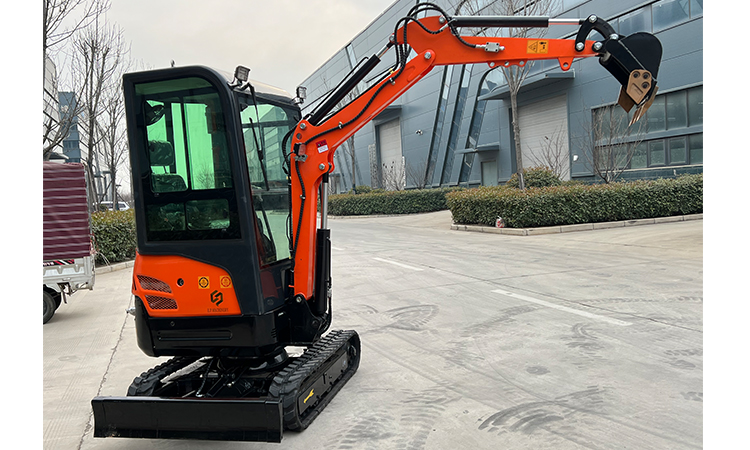

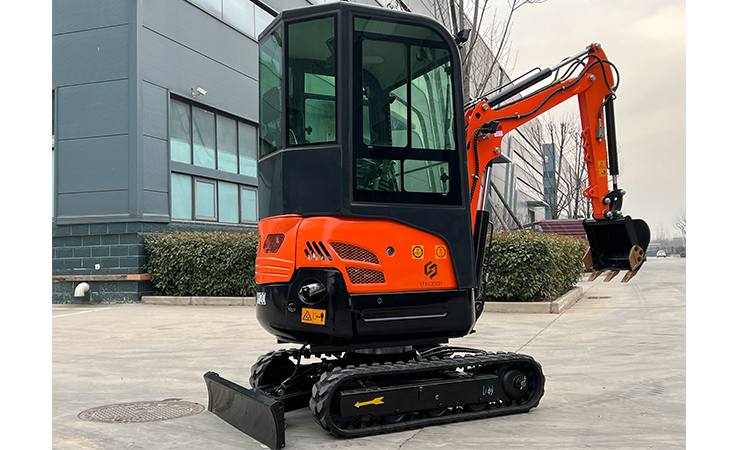

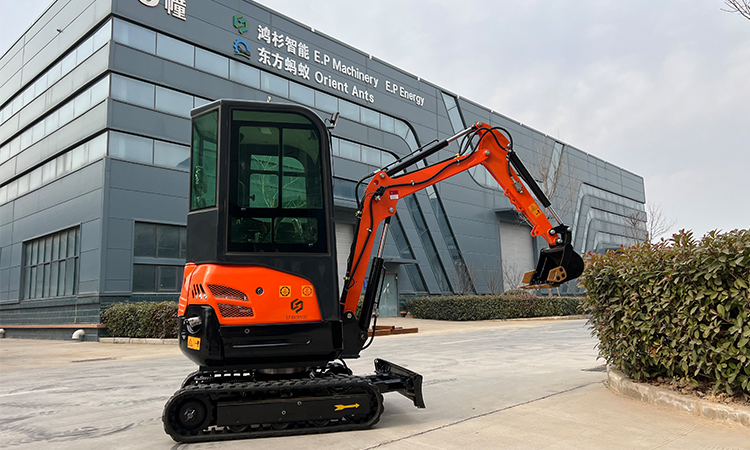

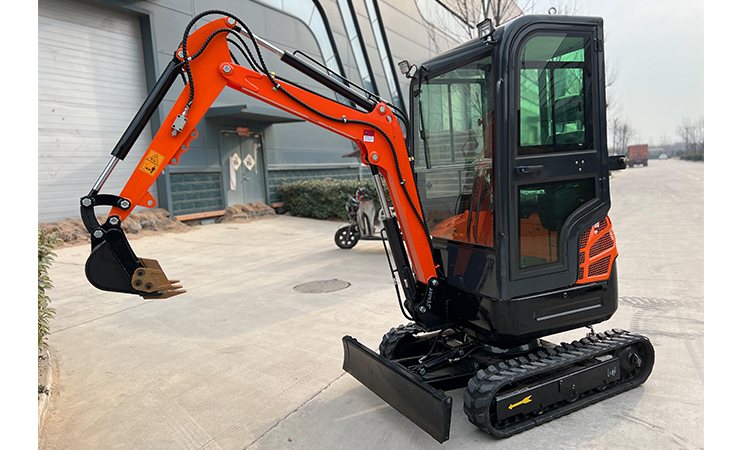

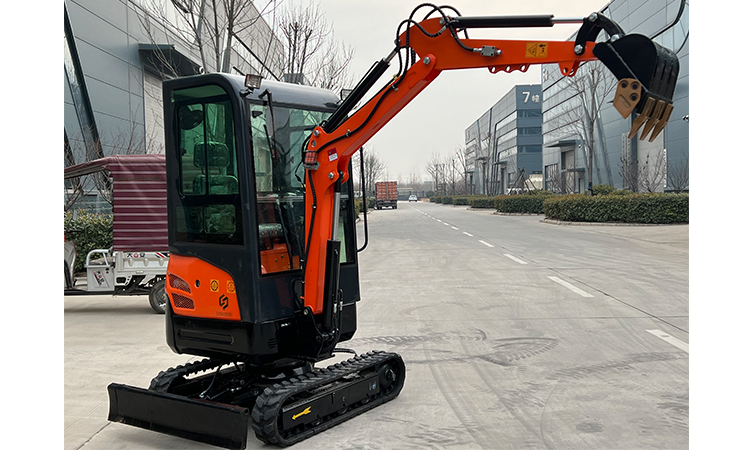

MY18 Mini Excavator is a brand new product of E.P Machinery Manufacturing Company's mini excavator series. Based on a thorough understanding of customer needs and integrating advanced international technology, it is a micro, tailless, tracked hydraulic excavator with independent property rights
MY18 hydraulic excavator has the characteristics of "high reliability, excellent performance, safety, environmental protection, comfort and convenience", and can be equipped with various configurations to meet the needs of different countries and customers
Reinforced structural components
The left and right beams of the X-shaped lower frame and box structure have high strength, high rigidity, and excellent bending and torsion resistance, which can meet the needs of different working conditions
The MY18 small excavator has a reinforced X-shaped box structure and an enlarged box section, which overall improves the strength of the lower frame and makes the entire machine work more stably
The MY18 small excavator uses supporting wheels instead of carrier rollers and adopts a bilateral installation method, which improves the stress conditions, makes the structure more sturdy, and significantly improves the service life of the carrier rollers
Company Info+Get More
EP Machinery Co., Ltd. since 1998, 1 factory, 1 company, more than 300 workers, 3000 square meters workshop, more than 16 years of export experience, we are a professional manufacturer of construction machinery in China, the machines cover wheel excavator 4-10 tons, small and large crawler excavator 1-10 tons, small compact excavator and small mini excavator, etc. So I believe there must be a model that can meet your needs. Most of the machines have CE, TUV certificates, company ISO certificates. Every year, more than 1000 mini excavators are sold to the European market, 500 to the Australian market, the United States, Canada market.
Selected FAQ+Get More
China has a huge mini excavator industry, and with different manufacturers, you can get the quality and model you need at an affordable price. Chinese mini excavators can also be customized according to your requirements. Manufacturers prefer customer satisfaction so you can get what you want easily.
Mini excavator is an ideal excavator to meet the daily work needs of workers. Its fuselage is only 72cm wide, with a foldable flip bar, which can pass through very narrow places and even reach the places that most people can reach.
Our E.P brand small mini excavator accessories have video instructions on how to use them. For details, please refer to 'Small Excavation Accessories'.
First of all, it depends on the materials that need to be processed. If you need to dig out sand, gravel, etc., you can choose a bucket or breaker; if you need to transport wood, steel, etc., you can choose wood clamps or hooks; if you need to compact the ground Or piling, you can choose a tamping attachment or an auger.
The mini-excavator has powerful functions and can handle all kinds of work, such as digging holes, digging ditches, demolishing, removing tree stumps, digging garden ponds, etc.
They are usually used in urban infrastructure, residential area renovation, pipe laying and gardening projects, especially in places with limited space.
